Kessebohmer 380N gas spring Lift o mat

Gas spring Kessebohmer 380N

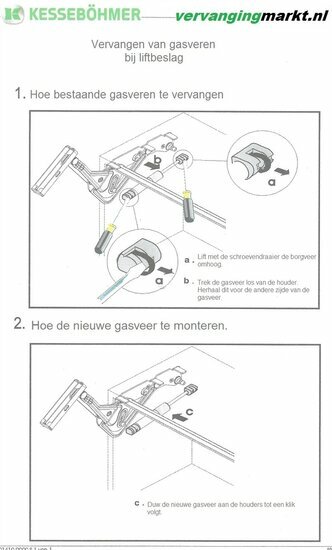

This damper is easy to replace by means of click system 2 metal fastener springs.

Features of the gas spring Kesseböhmer Lift O Mat 380N

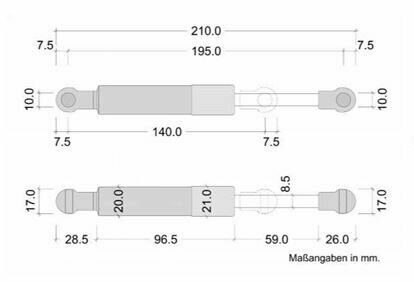

Length approx. 19.5 cm. center to center
total length is 21 cm
length piston housing (thick piece of the gas spring) 10 cm
length piston housing to end of fixing 13 cm
the door damper is to confirm by means of 2 bowls with clamping spring. Can be mounted in existing hardware as a replacement.
Color silver gray the old gas springs were black.

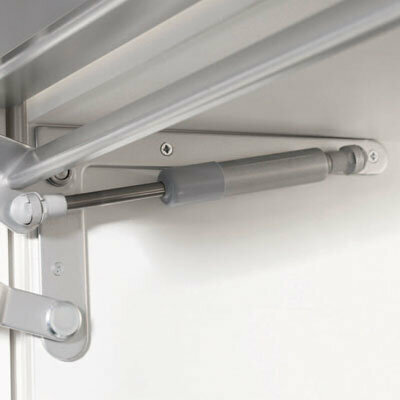

This gas spring is widely used in flap cabinets of kitchens and in flap systems that sit in front of the microwave (sliding upwards). We recommend that if the cabinet now contains a 380N gas spring to mount a 380N gas spring again. If a heavier one is fitted, the cabinet will open more easily and close more difficultly. This puts more force on the mounting. The pressure/force (N) has nothing to do with how long a gas spring lasts. If the valve has been given a heavier grip you can always go 1 step higher.

Stabilus supplies this gas spring under number 5601 0400N
Stabilus Hettich 2911IN 0380N

Designations
Kessebohmer gas spring, Kessebohmer gas spring pump, Kessebohmer gas pump, kessebohmer elevator o mat, gas spring kessebohmer
