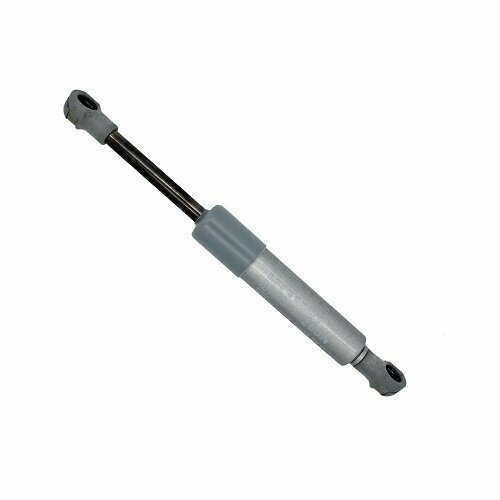

Kessebohmer 320N gas spring Lift o mat

Gas Spring Door Damper Kessebohmer 320N

This damper is easy to replace by means of click system 2 metal clamping springs to the attachment.

Gas spring Kesseböhmer Lift O Mat 320N
Length approx. 19,5 cm. center to center
Total length is 21 cm
Length piston housing (thick piece of the gas spring) 10 cm
Length piston housing to end of attachment 13 cm
The door damper is attached by means of 2 bowls with clamping spring. Can be mounted as a replacement in existing fittings.
Color: silver-gray. The old gas springs were black.

This gas spring is often used in kitchen hatchcases and in flap systems which sit in front of the microwave (sliding upwards)

We recommend if the cabinet now has a 320N gas spring to mount again. If a heavier one is fitted, the cabinet will open more easily and close more difficultly. This puts more force on the mounting. The pressure/force (N) has nothing to do with how long a gas spring lasts. If the valve has been given a heavier grip you can always go 1 step higher.

Stabilus supplies this gas spring under number 5596ZL 0335N and 0648RP 0320N

This is also called: Gas pump, gas pressure pump, gas cylinder, kessebohmer spring, kessebohmer gas pressure spring, 320 Newton.
